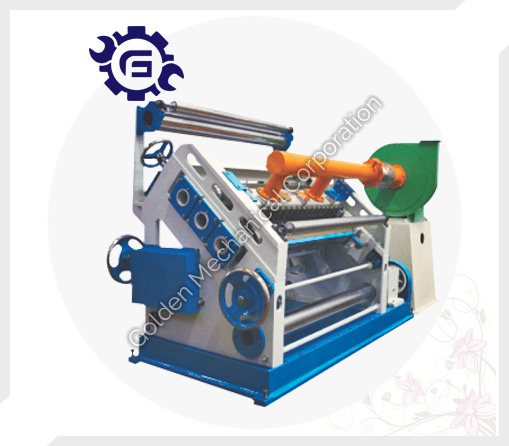

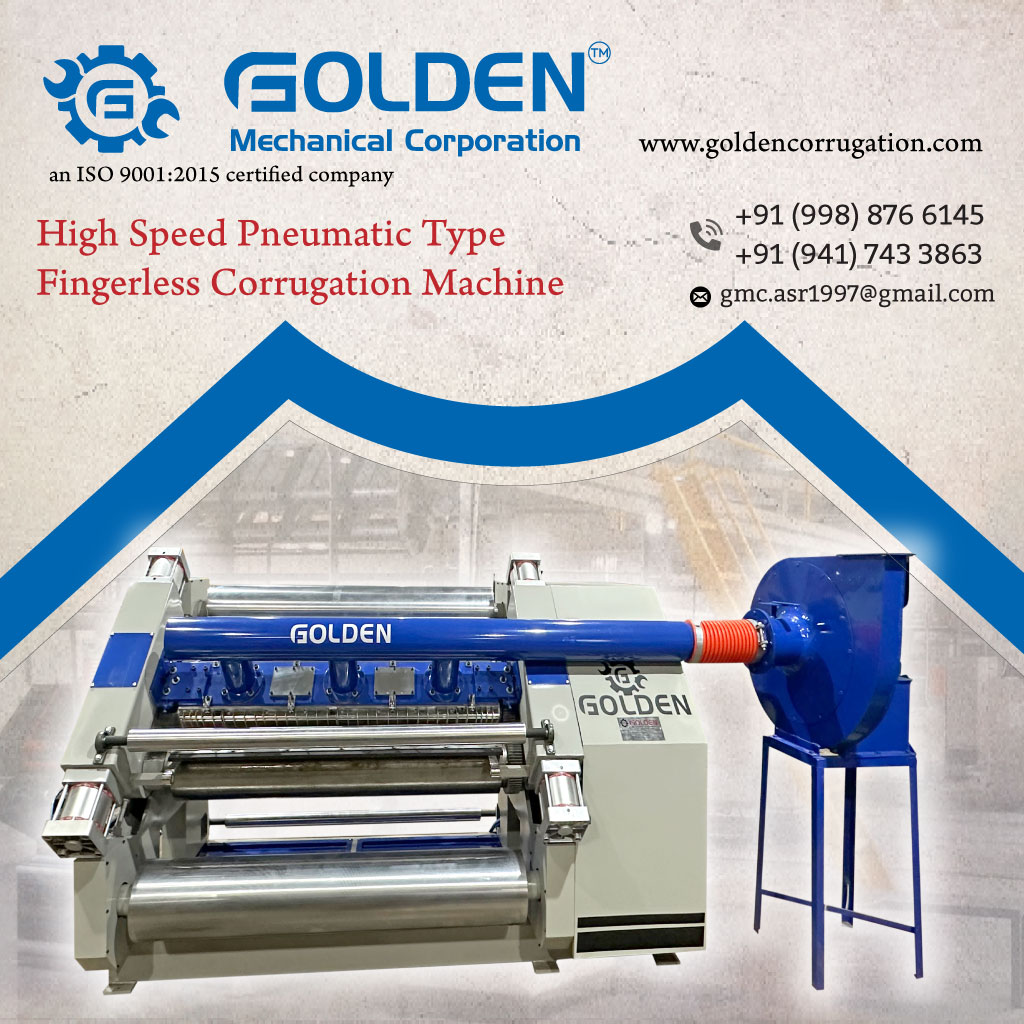

Fingerless Corrugation Machine
For high production with quality, this machine adopts fingerless technology. In this type of corrugation machine, air suction through compressor is used instead of adaptors and because of gum rolls without grooves, gum gets applied throughout without gaps and which results in better compression strength of box than traditional machines. This machine is recommended to be used on steam boiler or thermic fluid heaters. Machine speed is 125rft/min.
|
Size |
Motor H.P. |
Steam Req. Kg./Hr. |
Wt. App. (MT.) |
Floor Space |
Heating Load |
|
42" 52" 62" 72" 84" |
17.0 24.5 27.0 29.5 33.0 |
200 300 300 400 400 |
5.0 5.3 5.8 7.0 7.5 |
7.5' × 15' 8.5' × 15' 9.5' × 15' 10' × 17' 11' × 18' |
41 50 50 56 56 |
